Size: 610 × 610 × 35mm
Loading Range: 440lb-2000lb
Panel Finish: Anti Static HPL/PVC
Edge Trim:Trimless; Integral Trim

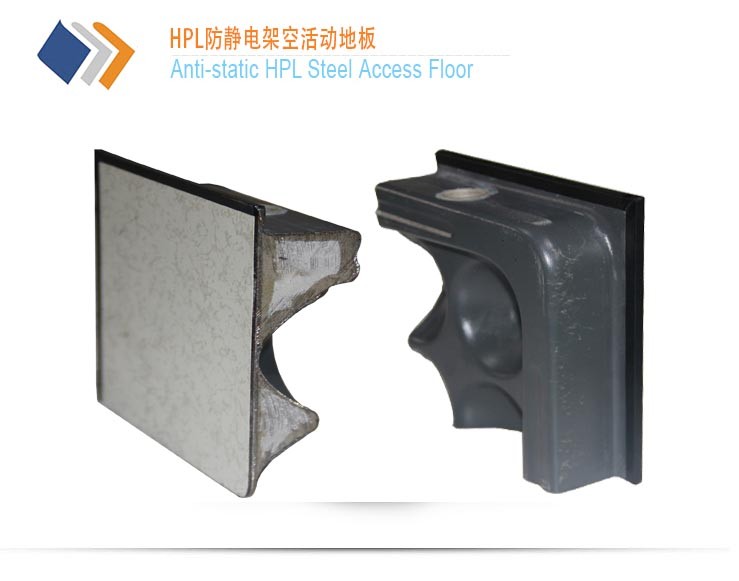

USA Type 610 Antistatic Steel Access Floor

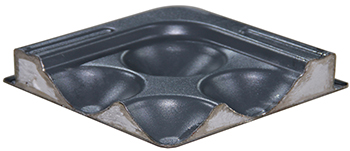

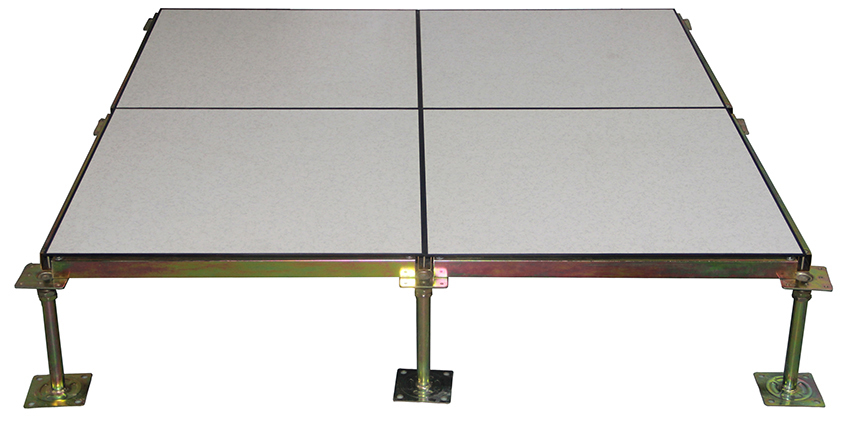

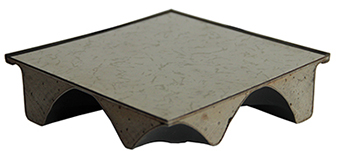

Top plate using SPCC hard rolled steel, bottom plate using ST14 steel for stretch, after automatic spot welding, environmental friendly oil treatment, wear resistant epoxy coating, the panel is them filled with foamed cement. Panel surface is then laminated with anti-static HPL. It can be gravity laid into the infrastructure formed by pedestals, stringers and screws.
Product Feature:
| 1. All steel components, Great Mechanical Performance. |
| 2. Heavy loading performance and excellent fire-rate. |
| 3.Special and scientifical design of ball stretch, wider bottom edge board, reinforcement rib etc, imporove panel loading performance. |
| 4. Precise dimension, great interchangeability. |
5. Dark-Grey Epoxy coating, hard wearing and anti-corrosive. |
Application:
Anti-static HPL Steel Access Floor products are widely used in computer room, data center, communication room, tele-broadcast center, electricity control center, mobile communication, satellite control centers.

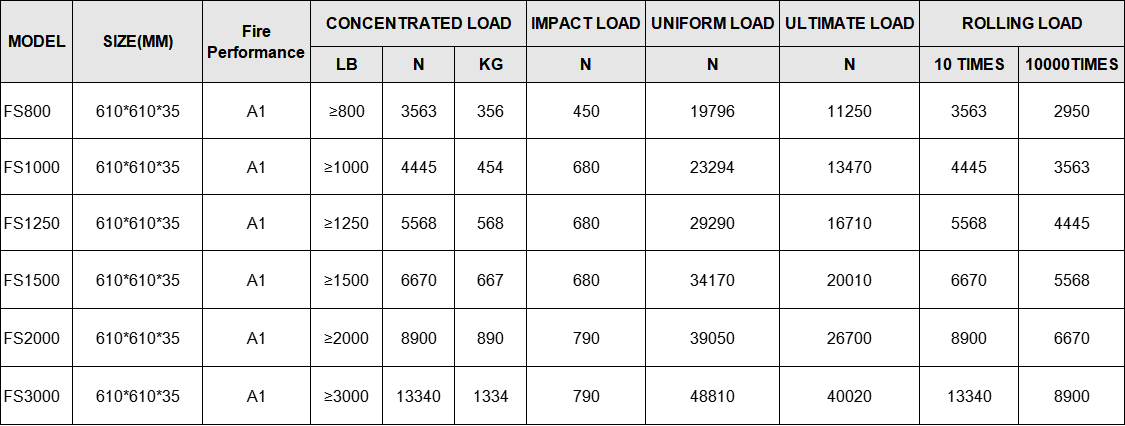

Loading Chart:
