Size: 600 × 600 × 35mm
Loading Range:CCS440lb-CCS2000LB
Panel Finish: Anti Static PVC
Edge Trim: C trim;Trimless

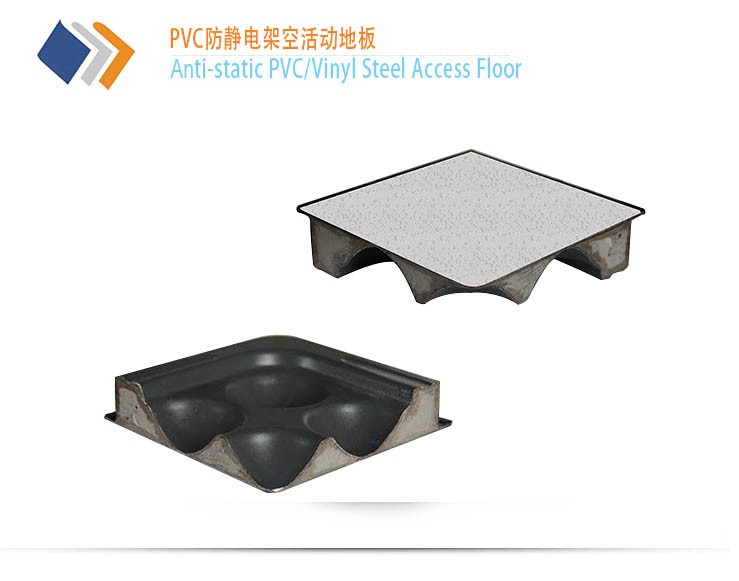

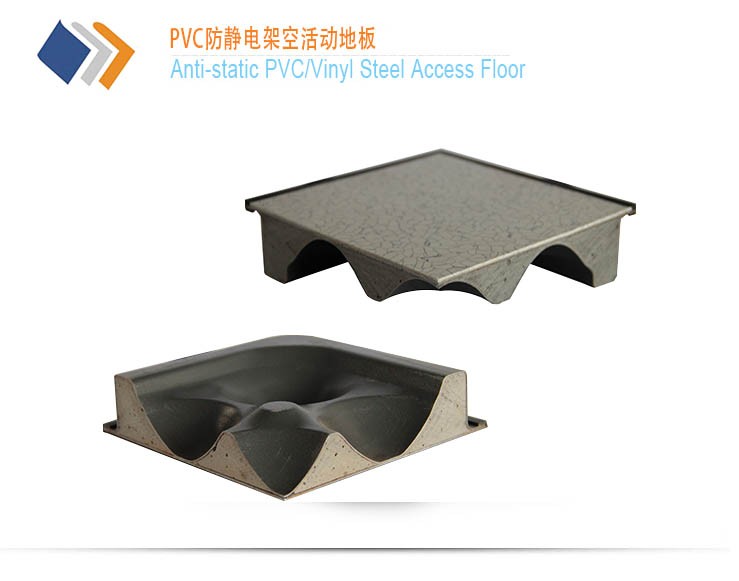

PVC/Vinyl Finish Steel Access Floor
Product Structure:

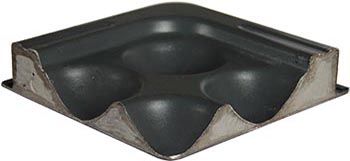

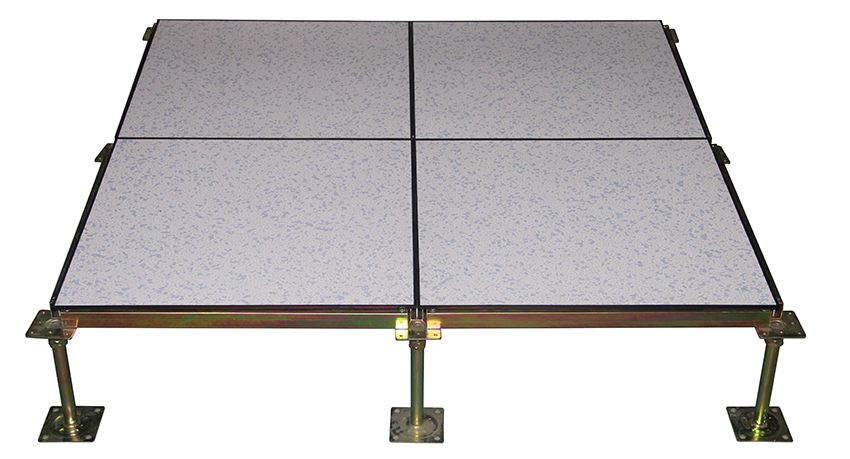

Top plate using SPCC hard rolled steel, bottom plate using ST14 steel for stretch, after automatic spot welding, environmental friendly oil treatment, wear resistant epoxy coating, the panel is them filled with foamed cement. Panel surface is then laminated with anti-static PVC. It can be gravity laid into the infrastructure formed by pedestals, stringers and screws.

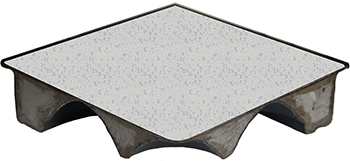

C Trim
Trimless
Product Feature:
| 1. All steel components, Great Mechanical Performance. |
| 2. Heavy loading performance and excellent fire-rate. |
| 3.Special and scientific design of ball stretch, wider bottom edge board, reinforcement rib etc, improve panel loading performance. |
| 4. Precise dimension, great interchangeability. |
| 5. Dark-Grey Epoxy coating, hard wearing and anti-corrosive. |
Application:
Anti-static PVC Steel Access Floor products are widely used in computer room, data-center, communication room, tele-broadcast center, electricity control center, mobile communication, satellite control centers.

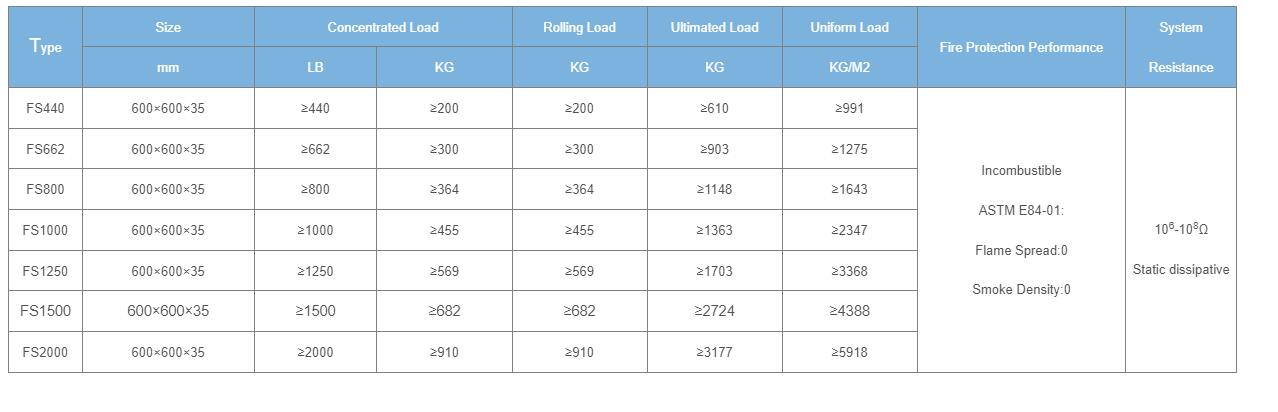

Loading Chart:
